Teflon Hose

Teflon Hose

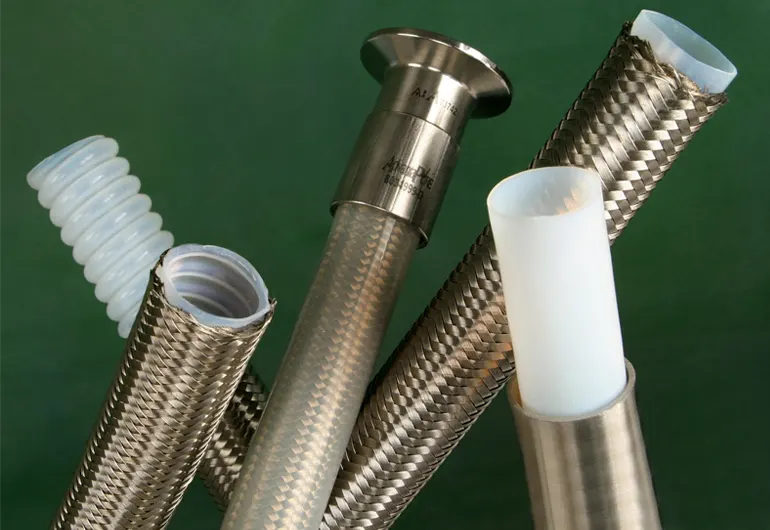

Ojus Overseas India engineer and manufacture PTFE ( Teflon Hoses) in configurations like: Smooth bore inner core and Convoluted inner core with Stainless steel 304 or Stainless steel 316 single or double wire braiding suitable for range of temperature and pressure applications and high resistance to chemical borne corrosivity. External braiding provides high protection against industrial abuses. These Teflon hoses are produced in different sizes and lengths as per client’s demand with and without unions. These products have claimed high demand in food grade, dairy, chemical and pharmaceutical industries.

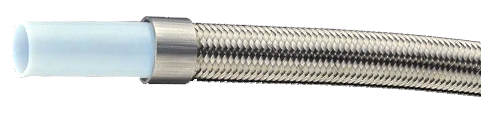

Smooth Bore Teflon Hose : Offering seamless flow with average flexibility.

Hose material Polytetrafluoroethylene (PTFE)
External braiding offered for pressure resistance

304 stainless steel single or double wire braiding

316 stainless steel single or double wire braiding

Silicon sleeve or Rubber hose covering externally for protection against external harsh environments.

Hose Inner Diameter 1/8” - 2"
Hose Length Available as per customer's specification
Working temperature -54° C to + 260° C maximum
Applications

Non-reactive providing excellent chemical resistant to strong acids and alkalis

Smooth bore provides non-contamination properties with easy to clean mechanism.

Long length hoses provide usable flexibilities

Pharmaceuticals, dairies and food industries

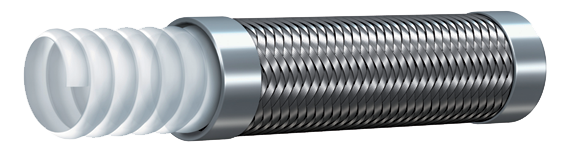

Convoluted Teflon Hose: Highly Flexible Teflon hoses with high angular helical convolutions providing maximum flexibility.

Hose material Polytetrafluoroethylene (PTFE)
External braiding offered for pressure resistance

304 stainless steel single or double wire braiding

316 stainless steel single or double wire braiding

Silicon sleeve or Rubber hose covering externally for protection against external harsh environments.

Hose Inner Diameter 1/4" - 2"
Hose Length Available as per customer's specification
Working temperature -54° C to + 260° C maximum
End connections As per client’s specifications
Applications

Non-reactive providing excellent chemical resistant to strong acids and alkalis;

Reduces frictions

High flexibilities and strength

Steam applications, chemicals, food and hot oils
